Selective Photothermolysis Architecture Reference Document: Multi-Wavelength Aesthetic System

EXECUTIVE SUMMARY

This document provides a comprehensive clinical and technical overview of the advanced multi-wavelength aesthetic platform, engineered for permanent hair reduction, vascular lesion clearance, and skin rejuvenation. The system leverages the principle of selective photothermolysis, utilizing precisely calibrated optical parameters to target specific chromophores while ensuring maximal epidermal protection. This whitepaper details the system architecture, internal hardware topology, treatment protocols, and compliance standards, establishing its position as a premier solution for high-volume medical aesthetic practices.

CLINICAL ARCHITECTURE & DESIGN

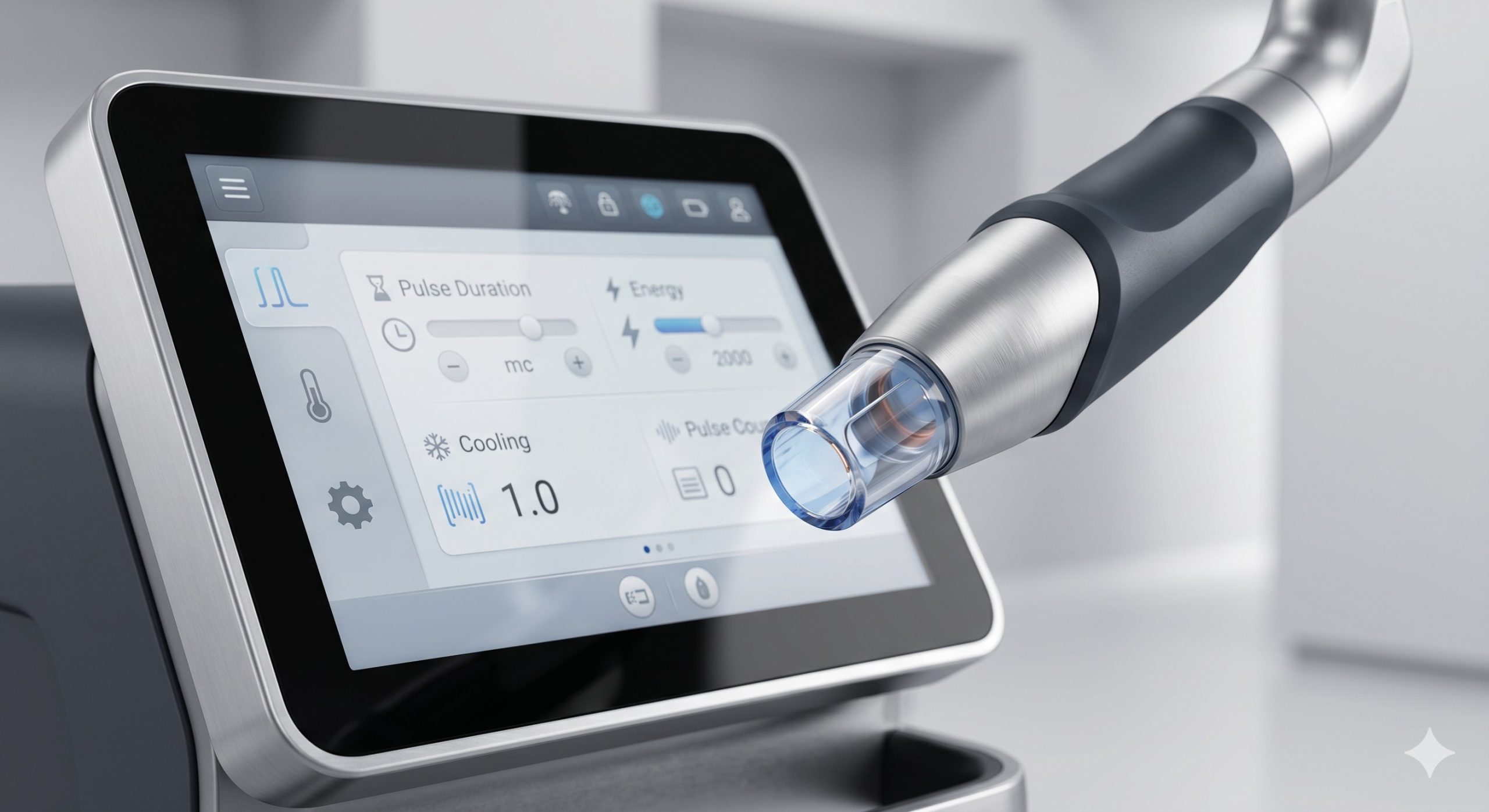

The foundation of the system’s efficacy lies in its sophisticated optical and thermal management architecture. A high-power, air-cooled laser bank generates a collimated beam that is conditioned through a proprietary homogenization path, ensuring a top-hat energy profile across the entire spot size. This uniform fluence distribution is critical for achieving consistent clinical outcomes and preventing hot spots that can lead to patient injury. The energy is delivered to the tissue via a precision-engineered handpiece that integrates an advanced sapphire contact cooling plate. This component operates on a thermoelectric (TEC) principle, achieving rapid surface cooling to -5 to 0 degrees Celsius, which is essential for extracting heat from the epidermis and enabling safe, high-fluence treatments even on darker skin phototypes.

INTERNAL HARDWARE TOPOLOGY

The platform’s internal architecture is organized into four primary subsystems: the optical source, the thermal management system, the control logic unit, and the power delivery module. The optical source consists of a stacked array of laser diodes, configured for multi-wavelength emission to address a broad spectrum of clinical indications. The thermal management system utilizes a closed-loop liquid cooling circuit, coupled with forced air convection, to maintain operating temperatures within stringent tolerances, ensuring consistent output and protecting the longevity of the laser bars. The control logic unit, governed by a high-speed processor, monitors and adjusts all parameters in real-time, interfacing with the user through a high-resolution, responsive touchscreen. A custom power supply provides stable, high-current delivery necessary for the pulsed operation of the laser diodes.

KEY INDICATIONS & CAPABILITIES

This system is cleared for a wide array of aesthetic applications, making it a versatile asset for any medical spa or dermatology clinic. Primary indications include: permanent hair reduction on all skin types (Fitzpatrick I-VI), treatment of benign pigmented lesions such as solar lentigines and ephelides, and the clearance of vascular lesions including telangiectasias and venous lakes. Additionally, the device is equipped for skin rejuvenation protocols, stimulating neocollagenesis and improving overall skin texture and tone. The multi-wavelength capability allows for customizing the treatment to the specific depth and chromophore, with independent control over fluence (J/cm²) and pulse duration (ms), enabling clinicians to tailor energy delivery precisely to the patient’s unique tissue characteristics.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Laser Type / Wavelength	Diode Laser / 755nm, 808nm, 1064nm
Maximum Fluence	Up to 120 J/cm² (dependent on wavelength and spot size)
Pulse Duration	2 – 400 ms (independently programmable per wavelength)
Spot Size	12mm x 12mm (standard, with interchangeable tips)
Repetition Rate	Up to 10 Hz
Cooling System	TEC (Thermoelectric Cooling) + Sapphire Contact + Water + Forced Air
Treatment Interface	Full-color, high-resolution 10.4-inch touchscreen
Dimensions (W x D x H)	45 cm x 50 cm x 100 cm (Approx.)
Weight	45 kg (Approx.)
Electrical Input	100-240 VAC, 50/60 Hz, 20A

PATIENT SAFETY & COMPLIANCE STANDARDS

Patient and operator safety are paramount in the system’s design, which incorporates multiple redundant safety mechanisms. An integrated skin contact sensor ensures that the system will only emit energy when the handpiece is properly seated on the treatment area. A motion sensor prevents accidental static firing, reducing the risk of overtreatment. The real-time temperature monitoring system at the sapphire tip actively modulates cooling intensity to maintain consistent epidermal protection. The system complies with all applicable international safety and performance standards. It holds CE certification as a Class IIb medical device and has received FDA 510(k) clearance for its intended indications. It is manufactured in accordance with ISO 13485:2016, ensuring rigorous quality management from production to post-market surveillance.

CLINICAL PROTOCOLS & PERFORMANCE

For optimal results, the system supports a variety of treatment protocols which are pre-programmed into the device interface. Hair reduction protocols are stratified by skin type, with recommended parameters and pulse sequences. For Fitzpatrick Skin Types I-III, a higher fluence with a shorter pulse duration is typically employed, while Types IV-VI benefit from a lower fluence, longer pulse duration, and more aggressive cooling to protect the melanin-rich epidermis. The system is designed for rapid high-volume treatments, with a repetition rate of up to 10 Hz. Clinical studies have demonstrated up to 85-90% hair reduction after a series of 4-6 sessions, with high patient satisfaction scores primarily driven by the system’s excellent pain management capabilities facilitated by the sapphire contact cooling. Post-treatment care protocols are minimal, requiring only gentle cleansing and broad-spectrum sunscreen application.
